IP68 PU Neon Series
Opal polyurethane encapsulation, IP68 rated and rating IK08
Permanently submersible for swimming pool, water features, fountain ,and more in the depth up to 2m
UV resistance, chemical stability against urban gases and protection against abrasion
Continuous and uniform illumination, no LED dot or dark spot
Constant current IC, long running metres with low voltage drop
Single color, Tunable white, RGB, RGBW available
3-Step MacAdam, tight BIN Control for colour consistency
0-10V, TRIAC (Phase cut), DALI dimmable
3 years warranty
Ingress Protection (IP) Rating
IP Code or Ingress Protection Code is defined in IEC 60529 which classifies and provides a guideline to the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. It is published in the European Union by CENELEC as EN 60529.
The standard aims to provide users more detailed information than vague marketing terms such as waterproof. For example, a cellular phone rated at IP67 is “dust resistant” and can be “immersed in 1 meters of freshwater for up to 30 minutes”. Similarly, an electrical socket rated IP22 is protected against insertion of fingers and will not become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or IP2X are typical minimum requirements for the design of electrical accessories for indoor use.
The digits indicate conformity with the conditions summarized in the tables below. The digit 0 is used where no protection is provided. The digit is replaced with the letter X when insufficient data has been gathered to assign a protection level. The device can become less capable, however it cannot become unsafe.
IP68 PU Neon Flex Features
Real IP68 with Polyurethane encapsulation, can be used underwater
Anti UV, No yellowish, No breakage, No smelling, Solvents & sea water resistant
Very robust and critical weather resistant
Special plug design, seamless joint to achieve perfect long line

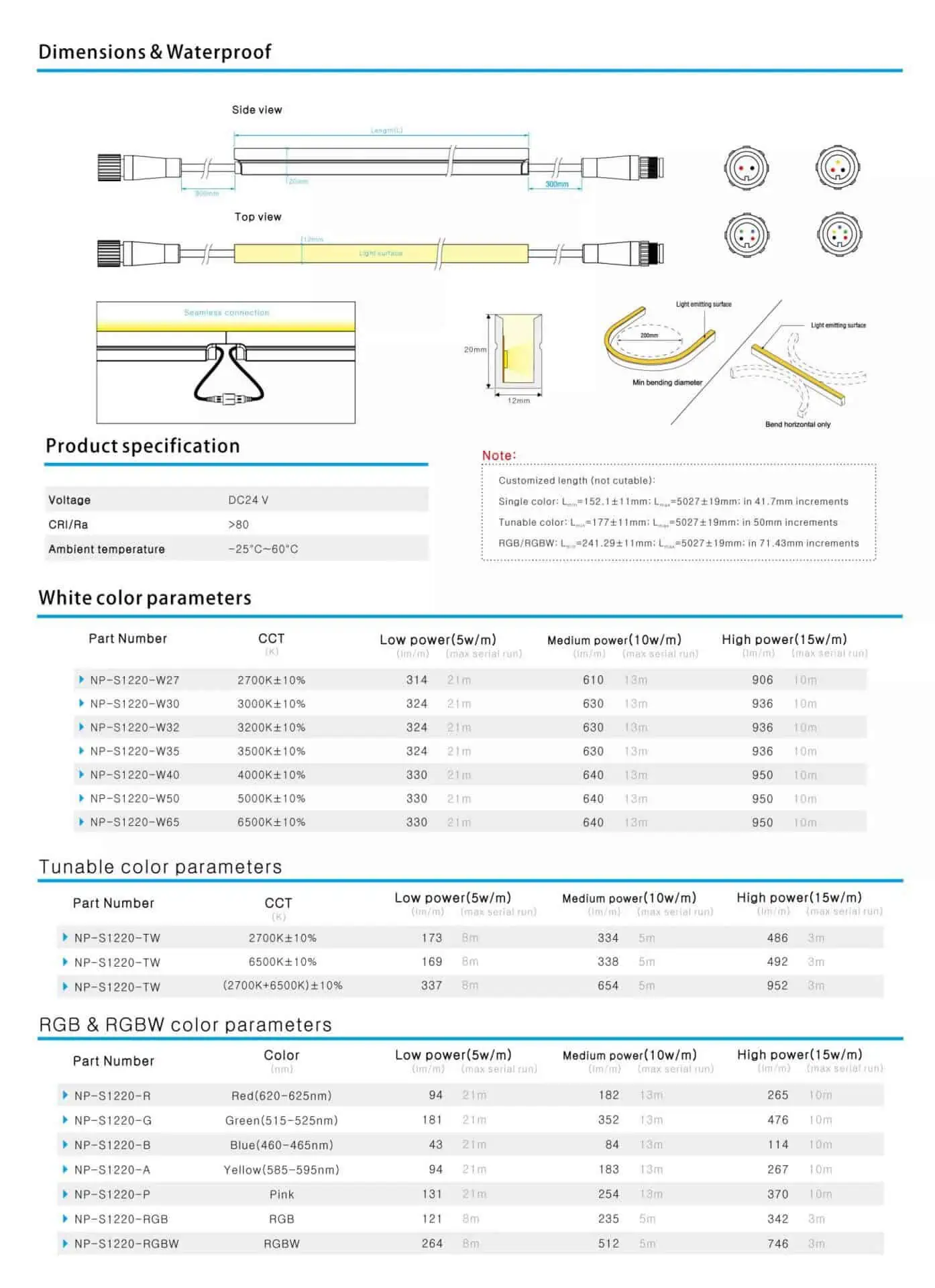

Available in size of 16*15mm(Vertical bending), 12*20mm(Horizontal bending)
Various of colors from white, dual white, RGB and RGBW
IP68 polyurethane protected against water,salt water and UV radiation Regular power 5W/m,10W/m and 15W/m for option Max serial connection length 21 meters with one end power Seven CCT optional from 2700K to 6500K, CRI>80Horizontal Bending NP-S1220
